GRUNDFOS TP 32-380/2-A-F-A-BAQE SINGLE STAGE PUMP

GRUNDFOS TP 32-380/2-A-F-A-BAQE SINGLE STAGE PUMP.

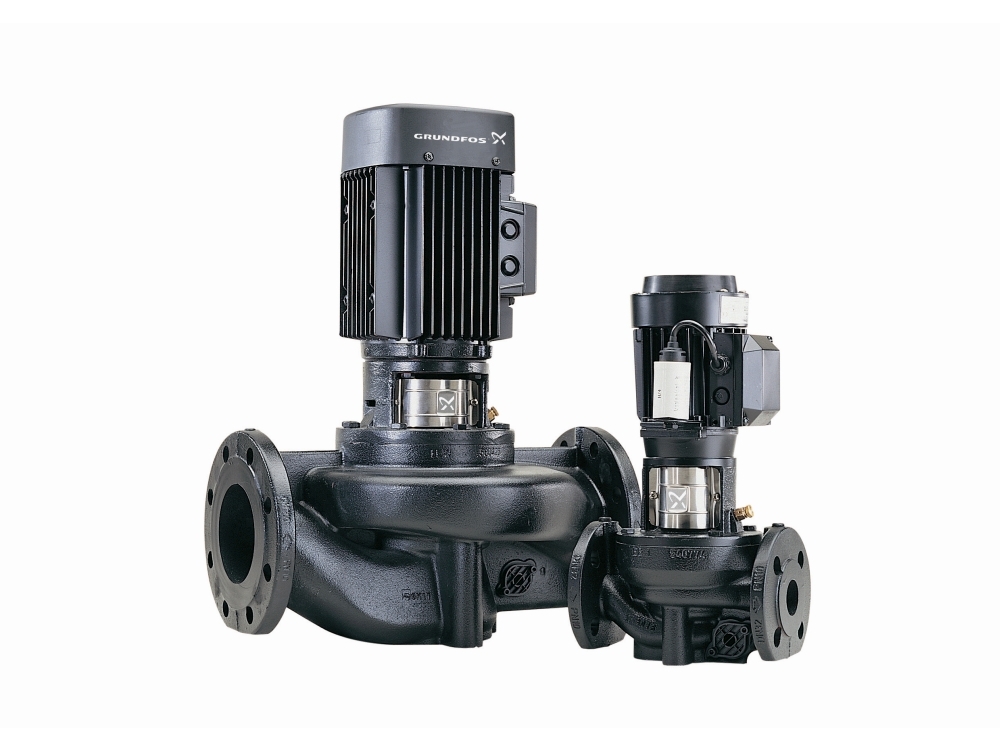

The Grundfos TP 32-380/2 A-F-A-BAQE is a single-stage close-coupled volute pump which has inline suction and discharge ports with the same diameter. The pump uses a top-pull-out design, this allows the motor, pump and impeller to be removed to carry out maintenance or service work without removing the pump housing from the pipework.

Product specification

Installation

• Maximum operating pressure: 232 psi
• Flange standard: DIN
• Pipe connection: DN 32
• Pump inlet/outlet: DN 32
• Pressure stage: PN 16
• Flange size for motor: FF215
• Port to port length: 341.30 mm

Technical

• Pump speed: 2910 rpm
• Rated flow: 314.9 Litres/Min
• Rated head: 103ft
• Actual impeller diameter: 6.65 in
• Primary shaft seal: BAQE
• Curve tolerance: ISO9906:2012 3B

Liquid

• Pumped liquid: Water
• Temperature range: 0°C to 120°C
• Temperature during operation: 20°C
• 62.29 ib/ft³

Materials

• Pump Housing: Cast Iron (EN-JL1040 / ASTM A48-40 B)
• Impeller: Cast Iron (EN-JL1040 / ASTM A48-40 B)

Electrical data

• Motor Type: 100LC
• IE Efficiency class: IE3
• IE efficiency: IE3 87.1%
• Rated power: 4HP
• Mains frequency: 50Hz
• Rated voltage: 3x 380-415D V
• Rated current: 6.3A
• Starting current: 840-920%
• Insulation class: F

---

The GRUNDFOS TP 32-380/2-A-F-A-BAQE SINGLE STAGE PUMP is a genuine, brand new Grundfos Pumps product, covered by a Grundfos Pumps manufacturer's guarantee.
