CD RANGE 32C COMBI LPG / BOILER EXPLODED VIEW (Page 8)

Sort by:

Page:

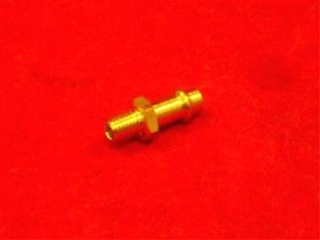

ALPHA 1.2364 BRASS FAN PRESSURE PORT

ALPHA 1.2364 BRASS FAN PRESSURE PORT

Part No: 1250386 MPN: 1.2364

ALPHA 1.6413 M5 WASHER - PLASTIC (CD50)

Part No: 1257803 MPN: 1.6413

ALPHA 1.6221 HOSE UNION FOR SILICONE TUBES

Part No: 1250414 MPN: 1.6221

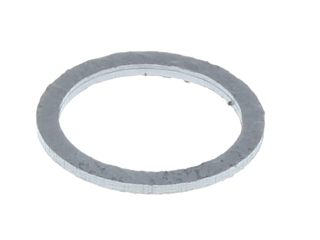

ALPHA 1.017282 SEAL-MODULE INSPECTION HOLE

ALPHA 1.017282 SEAL-MODULE INSPECTION HOLE

Part No: 1250187 MPN: 1.017282

ALPHA 1.010265 SCREW M3 X 25 (GAS VALVE)

Part No: 1250000 MPN: 1.010265

ALPHA 1.019744 SILICONE TUBE 14 X 10 (CD50)

Part No: 1257897 MPN: 1.019744

ALPHA 2.011923 BRACKET-SPARK GENERATOR MOUNT

Part No: 1250525 MPN: 2.011923

ALPHA 1.018532 EARTH CABLE FOR SPARK

ALPHA 1.018532 EARTH CABLE FOR SPARK

Part No: 1250240 MPN: 1.018532

ALPHA 1.01885 PIPE - DIV VALVE TO HEAT EXCH

Part No: 1250252 MPN: 1.018850

ALPHA 1.031289 CONTROL PANEL THERMOSTAT KNOB

Part No: 1258919 MPN: 2.012600

Alpha 1.015633 Inlet Manifold To Diverter Valve Fitting - CB/CD/HE

Alpha 1.015633 Inlet Manifold To Diverter Valve Fitting - CB/CD/HE

Part No: 1250136 MPN: 1.015633

ALPHA 1.019465 FLOW REGULATOR (GREEN) (CD32C)

ALPHA 1.019465 FLOW REGULATOR (GREEN) (CD32C)

Part No: 1250270 MPN: 1.019465

ALPHA 1.018849 PIPE - PUMP TO HEAT EXCHANGER

ALPHA 1.018849 PIPE - PUMP TO HEAT EXCHANGER

Part No: 1250251 MPN: 1.018849

ALPHA 1.011131 D8 GROMMET

ALPHA 1.011131 D8 GROMMET

Part No: 1250025 MPN: 1.011131

119 products found
